VPC Flow Logs

  • Only captures the capture metadata NOT THE CONTENTS - need a packet sniffer for that.
  • Attached to a VPC - all ENIs on that VPC
    • or the subnet
    • or ENI's directly
  • Flow logs are NOT realtime
  • Log destinations include S3 or CloudWatch logs or Athena for querying.

Flow logs capture all metadata from the capture point downward.

Important:

  • ICMP = 1
  • TCP = 6
  • UDP = 17

VPC Logs exclude access to the metadata services, DHCP, DNS and Windows License Server are not recorded.

Egress-only Internet Gateway

  • IPv4 addresses are private or public
  • NAT allows private IPs to access Public Networks without allowing externally initiated connections IN
  • The problem is that all IPv6 IPs are Public
  • IPv6 then allows all IPs IN and OUT.
  • NAT doesn't work with IPv6.

You see the problem, right?

Egress-only is outbound only for IPv6.

Egress-only is the same as the Internet Gateway

  • HA
  • scales as required.

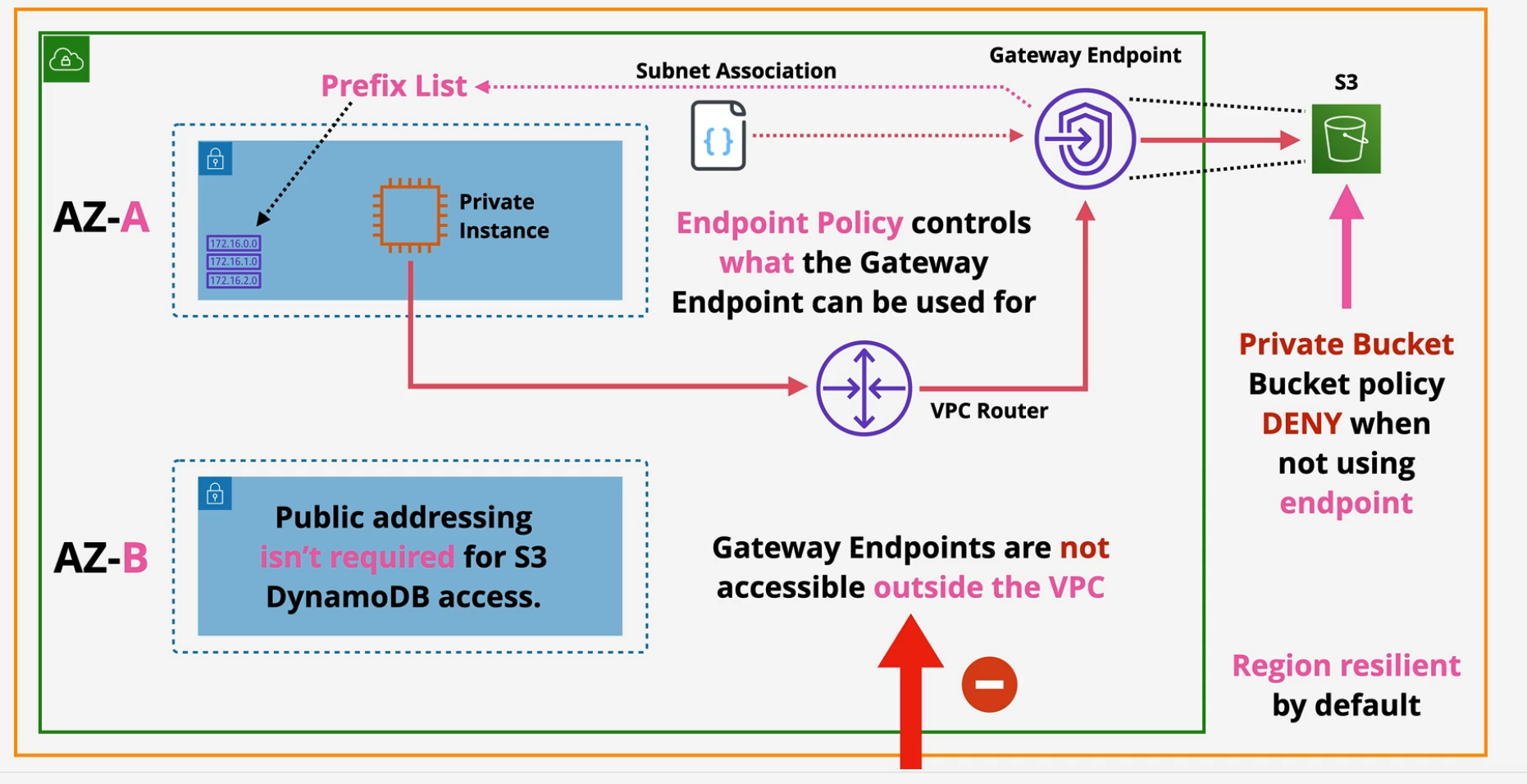

VPC Endpoints - Gateway

Gateway endpoints provide private access to S3 and DynamoDB

  • created per service per region.
  • prefix list is added to the route table -> gateway endpoint
  • HA across all AZs in a region by default
  • Endpoint policy is used to control what it can access
  • Regional - cannot access cross region services - cannot access S3 buckets across different regions.
  • These prevent Leaky Buckets - can be set to private only by allowing access only from a gateway endpoint.
  • Gateway Endpoints are not accessible outside the VPC.

VPC Endpoints - Interface

Interface endpoints provide private access to AWS public services.

  • historically used for anything NOT S3 and DynamoDB --- but S3 is now supported.
  • these are added to specific subnets - an ENI - making these not HA
  • to make these HA, add one endpoint to one subnet PER AZ used in the VPC.
  • Network access can be controlled via Security Groups
  • Endpoint Policies restrict what can be done with the endpoint over TCP and IPv4 only.
  • these use PrivateLink

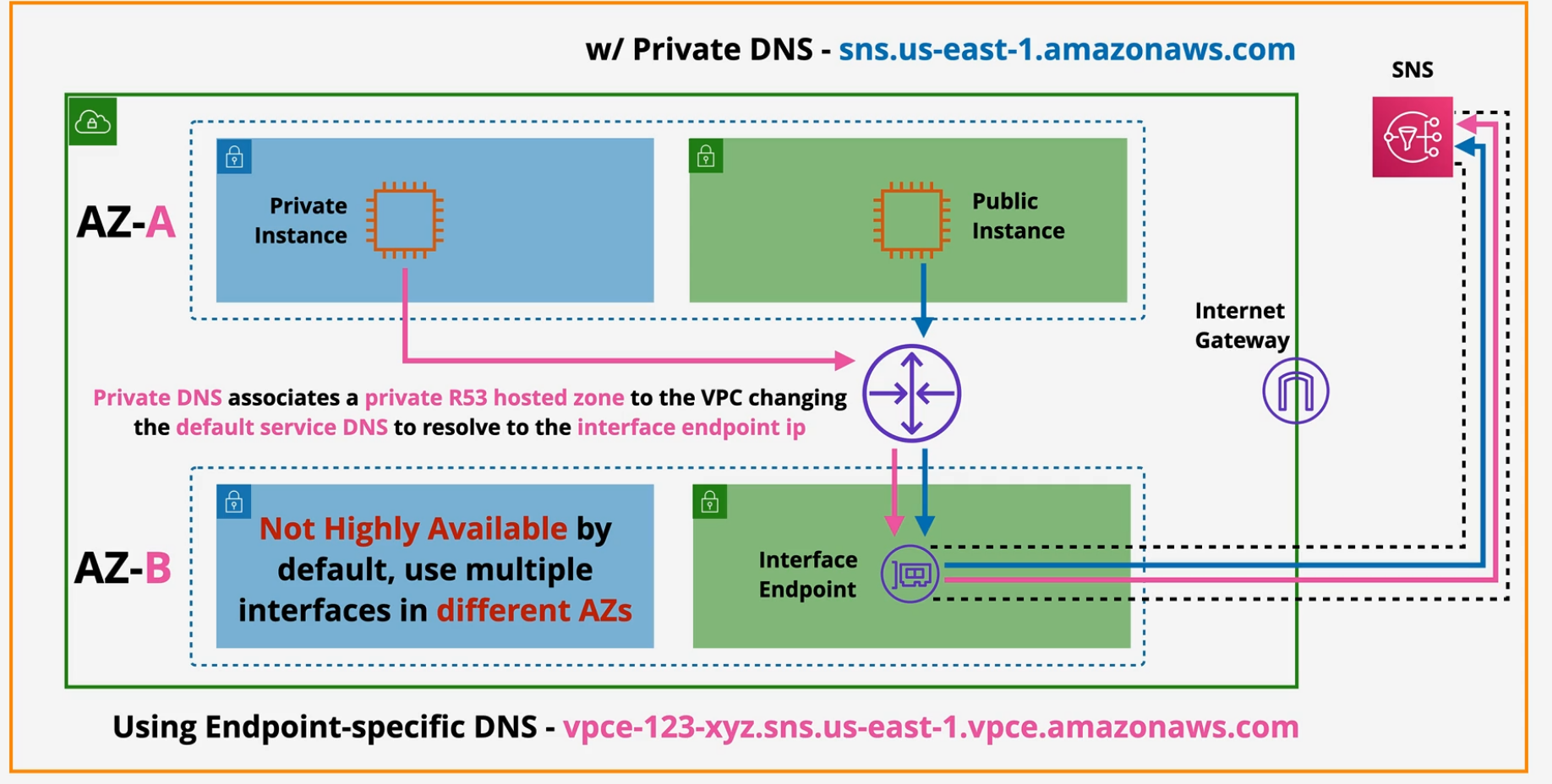

Interface endpoints use DNS, not route tables.

  • endpoint provides a new service endpoint DNS address
  • Endpoint Regional DNS
  • Endpoint Zonal DNS

Applications can use these or use PrivateDNS that overrides the default DNS for these services.


Things to remember:

  • Interface uses DNS and Private IP address
  • Gateway uses routing

Demo - Accessing S3 using Gateway Endpoint

Demo

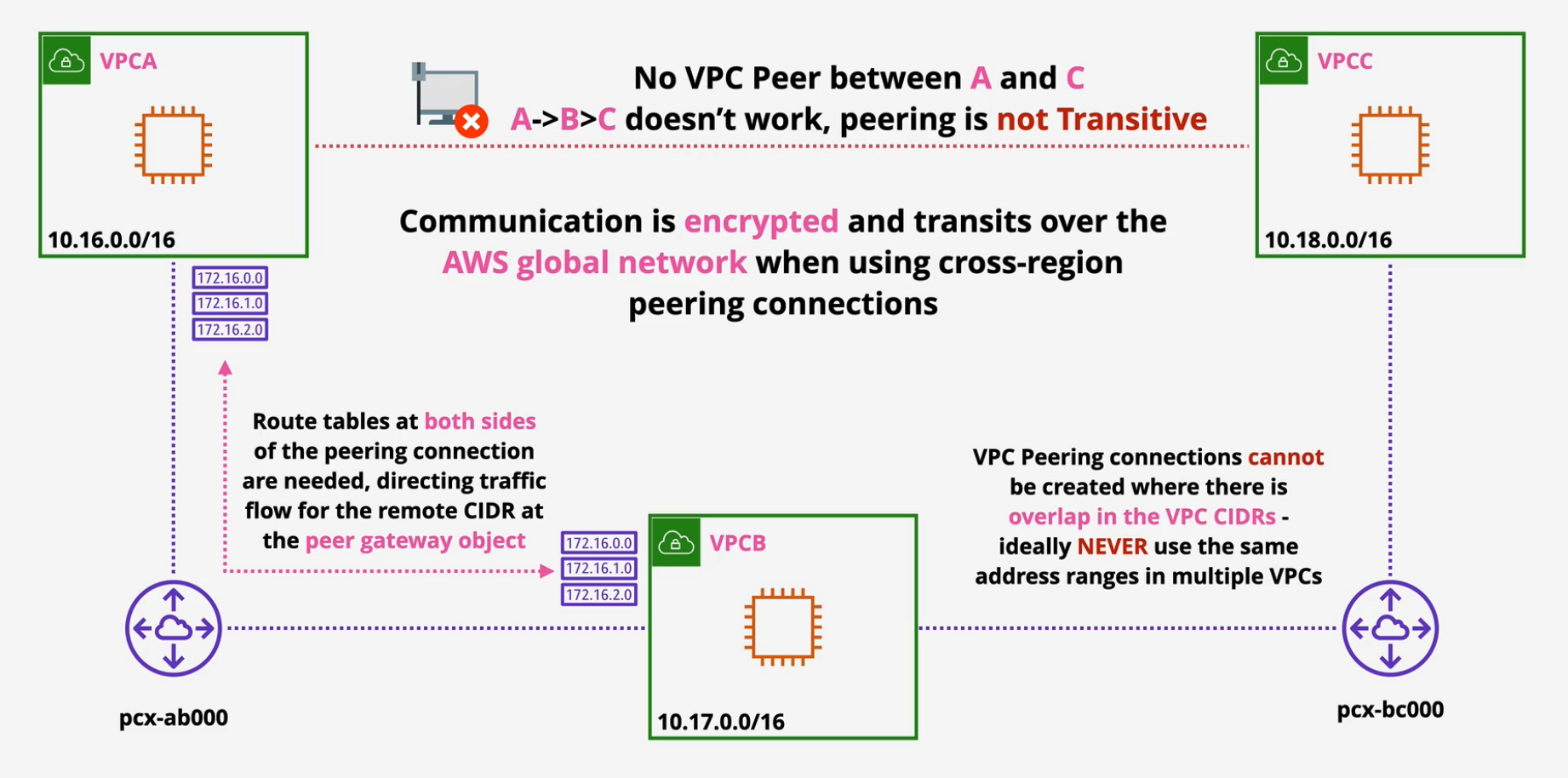

VPC Peering

Direct Encrypted network link between two VPCs

  • works in same and cross region and same and cross-account.
  • Public Hostnames resolve to private IPs.
  • Same region SGs can reference peer SGs - different regions need to use IP ranges or addresses

VPC peering only connects two VPCs This is not transitive. A-B and B-C does not A-C - need a third pair or a transit gateway.

Route tables, SGs and NACLs are needed. Important - IPv4's CIDRs cannot overlap


Demo - VPC Peering
